Using Azure Resource Manager Templates to deploy a Corda Enterprise node
This document will explain how to deploy a Corda Enterprise node to the Azure cloud using the Azure Resource Manager templates via the Azure Marketplace.
Prerequisites
You will need a Microsoft Azure account which can create new resource groups and resources within that group.
Find Corda Enterprise on Azure Marketplace
Go to https://azuremarketplace.microsoft.com/en-us/
and search for corda enterprise and select the
Corda Enterprise Single Node option:
Click on GET IT NOW:
Click on Continue to agree to the terms:
This will take you to the Azure Cloud Portal. Log in to the Portal if you are not already. It should redirect to the Corda Enterprise template automatically:
Click on Create to enter the parameters for the
deployment.

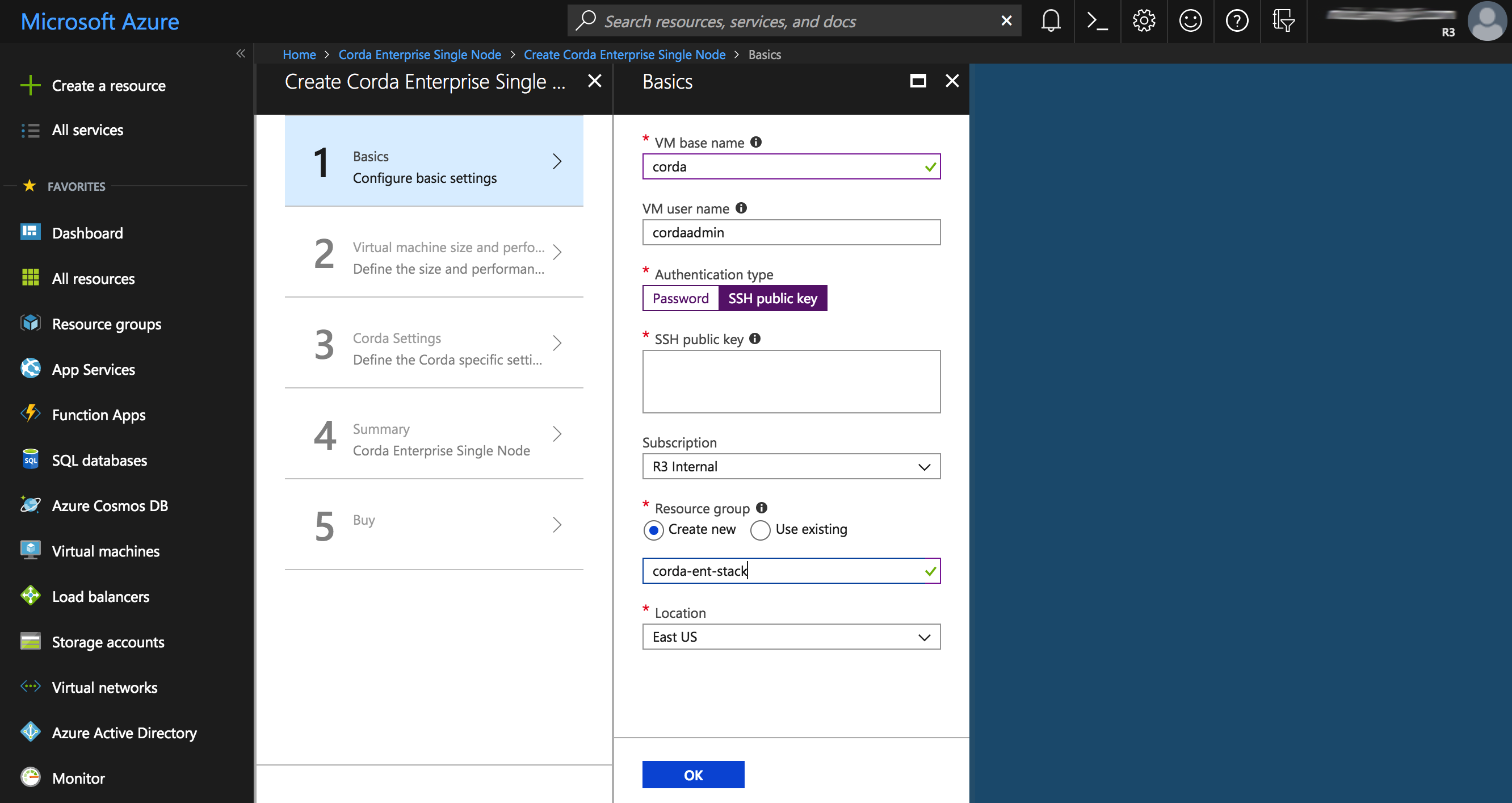

Enter the VM base name, an SSH public key or password to connect to
the resources over SSH, an Azure region to host the deployment and
create a new resource group to house the deployment. Click
OK.
Next select the virtual machine specification. The default here is
suitable for Corda Enterprise so its fine to click OK. Feel
free to select a different specification of machine and storage if you
have special requirements.
Next configure the Corda node settings. Currently the only version available with the template is the current release of Corda Enterprise. We may add more version options in the future.
Enter the city and country that you wish to be associated with your Corda node.
Note
This doesn't need to be the same as the Azure region you host your node in. It should represent the main location of your business operations.
You will need to obtain a one-time-download-key in order
to set up the template. This will allow the template scripts to connect
to, and provision the node to the Corda Testnet.
You can register with Testnet and obtain the
ONE-TIME-DOWNLOAD-KEY at https://testnet.corda.network
or see the Testnet documentation: corda-testnet-intro.
Finally you can select your database sizing in the
Corda Data Tier Performance (the default is fine for
typical usage).
Click OK.

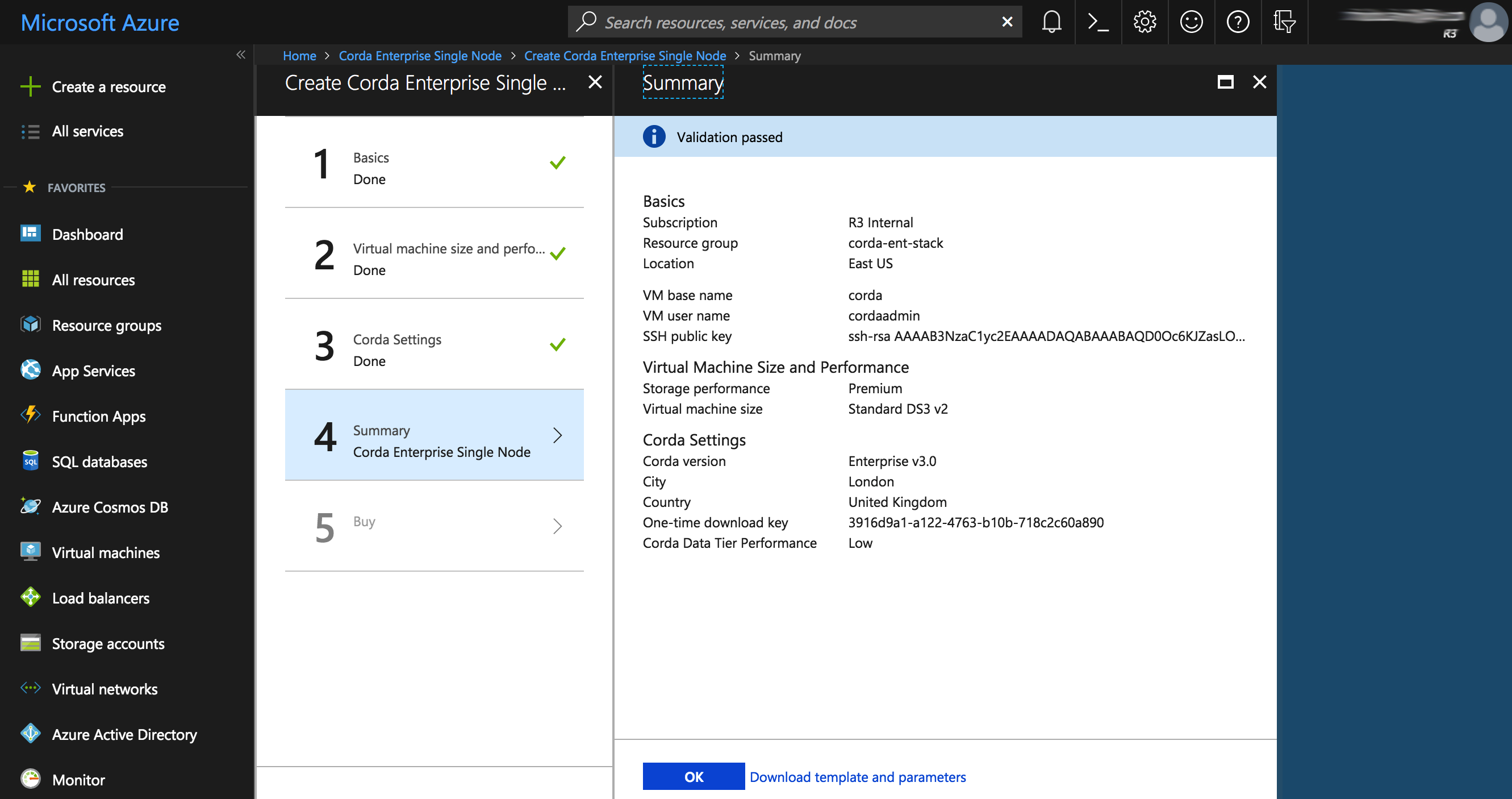

Wait for the validation checks to pass and check the settings. Click
OK.
Check the Terms of Use and if everything is OK click
Create. Azure will now run the template and start to
provision the node to your chosen region. This could take some time.
You will be redirected to your Dashbord where the
deployment will appear if the deployment completes without errors.
You can now log in to your resource by selecting the virtual machine
in the resource group and clicking on Connect. Log in with
SSH.
Testing the deployment
You can test the deployment by following the instructions in testnet-explorer.
