onefuzz/contrib/webhook-teams-service

Webhooks Endpoint Example

This example endpoint takes any incoming OneFuzz webhook and submits it to Microsoft Teams.

Check out Webhook Events Details for the schema of all supported events.

Creating an Azure Function

1. Edit local.settings.json and add the following to the Values dictionary:

   • Create a Microsoft Teams incoming webhook URL, and set this the value for TEAMS_URL.
   • Create a random string that you generate, and set this value for HMAC_TOKEN. This will be used to help secure your webhook

2. Create Azure Resources for an Azure Function.

3. Ensure your function is HTTPS only:

   az functionapp update --resource-group <RESOURCE_GROUP> --name <FUNCTION_APP_NAME> --set httpsOnly=true


4. Deploy your function

   func azure functionapp publish <FUNCTION_APP_NAME> --publish-local-settings


5. From the previous command, write down the URL for your webhook. It should look something like this:

   webhook - [httpTrigger]
       Invoke url: https://<FUNCTION_APP_NAME>.azurewebsites.net/api/webhook?code=<BASE64_ENCODED_STRING>


6. Register this new URL webhook to OneFuzz. In this example, we're registering a webhook to tell our service any time a job is created and stopped:

   onefuzz webhooks create my-webhook "https://<FUNCTION_APP_NAME>.azurewebsites.net/api/webhook?code=<BASE64_ENCODED_STRING>" job_created job_stopped --secret_token <HMAC_TOKEN>


   NOTE: Make sure HMAC_TOKEN is the value we added to local.settings.json earlier.

   This will respond with something akin to:

   {
       "event_types": [
           "job_created",
           "job_stopped"
       ],
       "name": "my-webhook",
       "webhook_id": "9db7a8bb-0680-42a9-b336-655d3654fd6c"
   }


7. Using the webhook_id we got in response, we can test our webhook using:

   onefuzz webhooks ping 9db7a8bb-0680-42a9-b336-655d3654fd6c


8. Using webhook_id we got in response, we can test if OneFuzz was able to send our service webhooks:

   onefuzz webhooks logs 9db7a8bb-0680-42a9-b336-655d3654fd6c


   If our webhook is successful, we'll see something akin to:

   [
       {
           "event": {
               "ping_id": "0770679d-67a0-4a6e-a5d7-751c7f80ebab"
           },
           "event_id": "0c12ca77-bff8-4f8b-ae0d-f38f64cf0247",
           "event_type": "ping",
           "instance_id": "833bd437-775c-4b80-be62-599a9907f0f9",
           "instance_name": "YOUR-ONEFUZZ-INSTANCE-NAME",
           "state": "succeeded",
           "try_count": 1,
           "webhook_id": "9db7a8bb-0680-42a9-b336-655d3654fd6c"
       }
   ]


   OneFuzz will attempt to send each event up to 5 times before giving up. Instead of succeeded as above, you might see retrying if OneFuzz is still working to send the event, or failed if OneFuzz has given up sending the event.

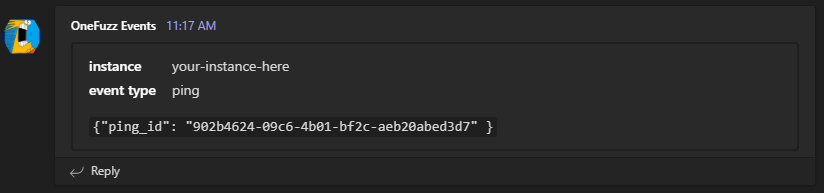

9. Check your Teams channel. If all is successful, we should see something like the following:

Troubleshooting

• If your function isn't working as expected, check out the logs for your Azure Functions via:

  func azure functionapp logstream <FUNCTION_APP_NAME> --browser


• If you see exceptions that say missing HMAC_TOKEN or missing TEAMS_URL, you forgot to add those settings above.
• If you see exceptions saying missing X-Onefuzz-Digest, you forgot to set the --secret_token when you during onefuzz webhooks create above. This can be addressed via:

  onefuzz webhooks update --secret_token <HMAC_TOKEN> <webhook_id>
